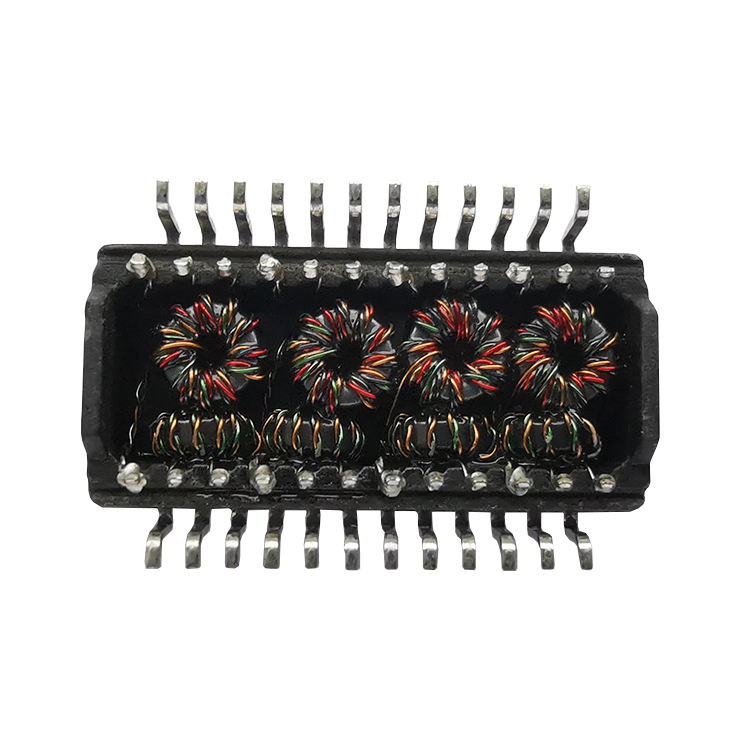

HB5004HLT Single Port 1Gigabit PoE SMD Magnetic Modules

  • Number of Ports: Single Port
  • Speed: 1000 Base-T
  • Application-Lan : NoN PoE
  • Compatible Brand : Pulse
  • Mounting Type: SMD
  • Temperature: ﹣40 TO ﹢85
  • Pin Quantity: 24

  • Part Number:HB5005HLT
    HB5006HLT
    HXB5008HLT
    HB5004HLT
    HB5009HLT
    HXB5007HLT
    HB5010HLT
    HXB6020HLT
  • Product Detail

    Contact Us

    Product Tags

    Similar Part No

    HB5004HLT Single Port 1Gigabit PoE SMD Magnetic Modules

    QQ截图20171225160159

    Categories  Transformers
     Network Transforme
    Transformer Type  ETHERNET(NoN POE)
    PIN Contacts  24
    Number of Ports  Single Port
    Mounting Type  Surface Mount
    Turns Ratio - Primary:Secondary  1CT:1CT
    Packaging  SMD
    Operating Temperature  -40°C ~ 85°C
    Comment  SAME AS NL VERSION
    Construction  OPEN FRAME
    RoHS Compliant  YES-RoHS-5 WIth Lead in Solder Exemption

    The improvement of “SuperSpeed USB” goes far beyond the increase in transmission rate. In USB 3.0, how to cooperate more harmoniously between the device and the computer host is also regarded as a key research direction. On the basis of inheriting the core architecture of USB 2.0, how to take advantage of the dual-bus mode and how to enable users to directly experience the advancement of USB 3.0 over USB 2.0 has become the focus.
