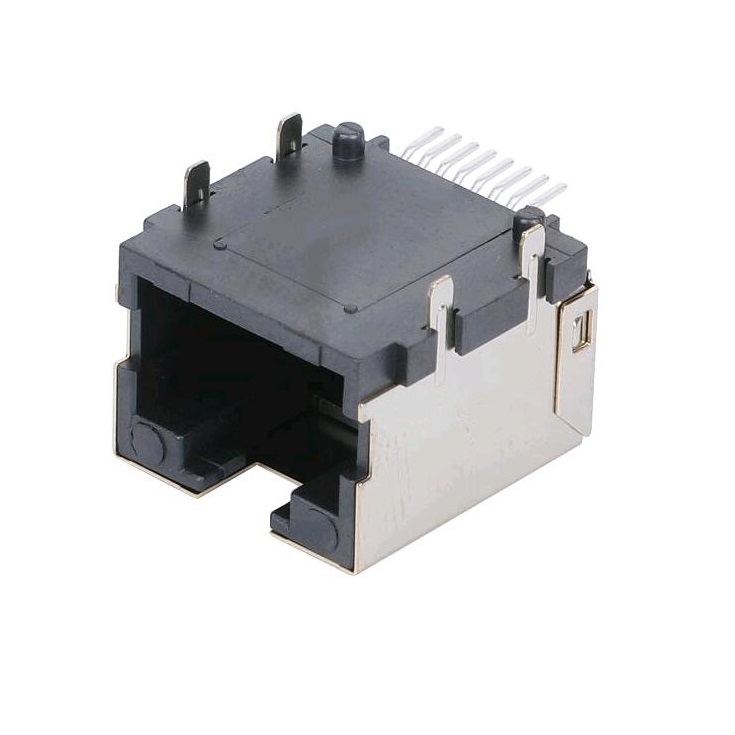

ZES15311NN Ethernet RJ45 Jack SMD RJ45 Female Connector
| Categories | Connectors, Interconnects |
| Modular Connectors - Jacks | |
| Application-LAN | ETHERNET(NoN POE) |
| Connector Type | RJ45 |
| Number of Positions/Contacts | 8p8c |
| Number of Ports | 1×1 |
| Applications Speed | Without Magnetics |
| Mounting Type | Surface Mount |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 10.75mm |
| LED Color | Without LED |
| Shielding | Shielded |
| Features | Board Guide |
| Tab Direction | UP |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| RoHS Compliant | YES-RoHS-5 WIth Lead in Solder Exemption |
The core of the RJ module is the modular jack. The gold-plated wire or plug can maintain a stable and reliable electrical connection with the modular socket shrapnel. Due to the friction between the shrapnel and the socket, the electrical contact is further strengthened as the plug is inserted. The main body of the jack is designed with an integral locking mechanism, so that when the modular plug is inserted, the interface between the plug and the jack can have a greater pulling strength. The wiring module on the RJ module is connected to the twisted pair through a “U”-shaped wiring slot, and the locking spring can fix the RJ module on the information outlet device such as the panel.
