Pulse HX7260NL H7019FNL Compatible ZhuSun Jack 10G Base-T Ethernet Transformer 24 PIN Single Port POE+ SMD

  • Number of Ports: Single Port
  • Speed: 10G
  • Application-Lan : NoN PoE
  • Compatible Brand : Pulse
  • Mounting Type: SMD
  • Temperature: ﹣40 TO ﹢85
  • Pin Quantity: 24

  • Part Number:HX7137NL
    H7137FNL
  • Product Detail

    Contact Us

    Product Tags

    Similar Part No

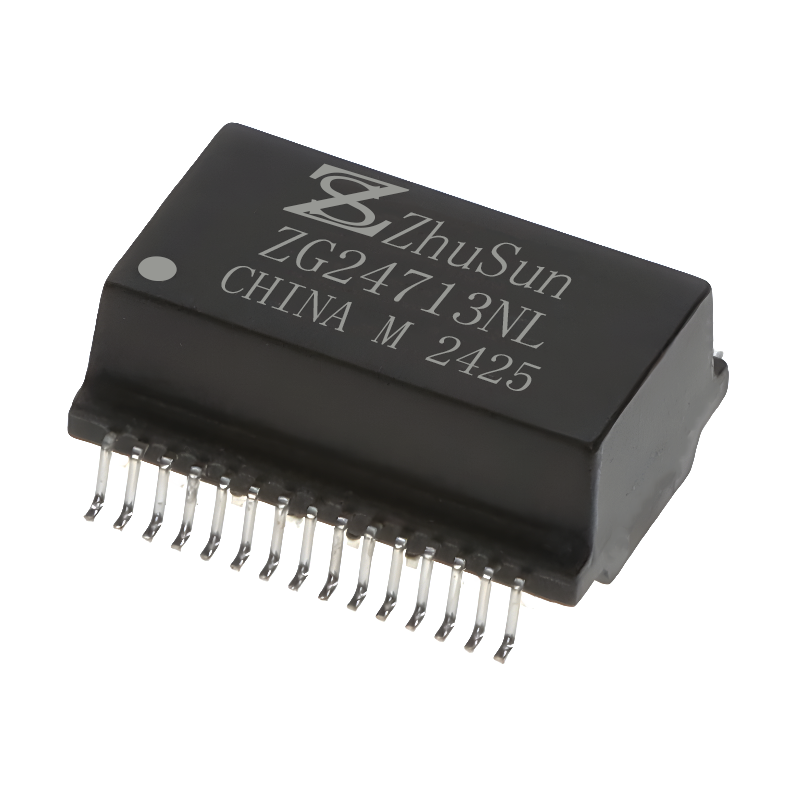

    Pulse HX7260NL H7019FNL Compatible ZhuSun Jack 10G Base-T Ethernet Transformer 24 PIN Single Port POE+ SMD

    QQ截图20171227163138

    Pulse HX7260NL Compatible ZhuSun Jack 10G Base-T Lan Transformer Modules For Router (POE+,SMD,24 PIN,Single Port )

    Categories  Transformers
     Network Transforme
    Transformer Type  ETHERNET(POE+)
    PIN Contacts  24
    Number of Ports  Single Port
    Mounting Type  Surface Mount
    Turns Ratio - Primary:Secondary  1CT:1CT
    Packaging  SMD
    Operating Temperature  -40°C ~ 85°C
    Comment  SAME AS NL VERSION
    Construction  OPEN FRAME
    RoHS Compliant  YES-RoHS-5 WIth Lead in Solder Exemption

    USB 3.0 can provide 50%-80% more power to support devices that require more power to drive, and those devices that are charged via USB indicate that charging can be completed faster.
    The new Powered-B interface consists of two additional lines, providing power support up to 1000 mA. It can drive the wireless USB adapter completely, and get rid of the need for the traditional USB adapter to be connected by a cable. Usually wired USB devices need to be connected to a hub or the computer itself, and with the support of high power, there is no need for a “wire” to exist.
