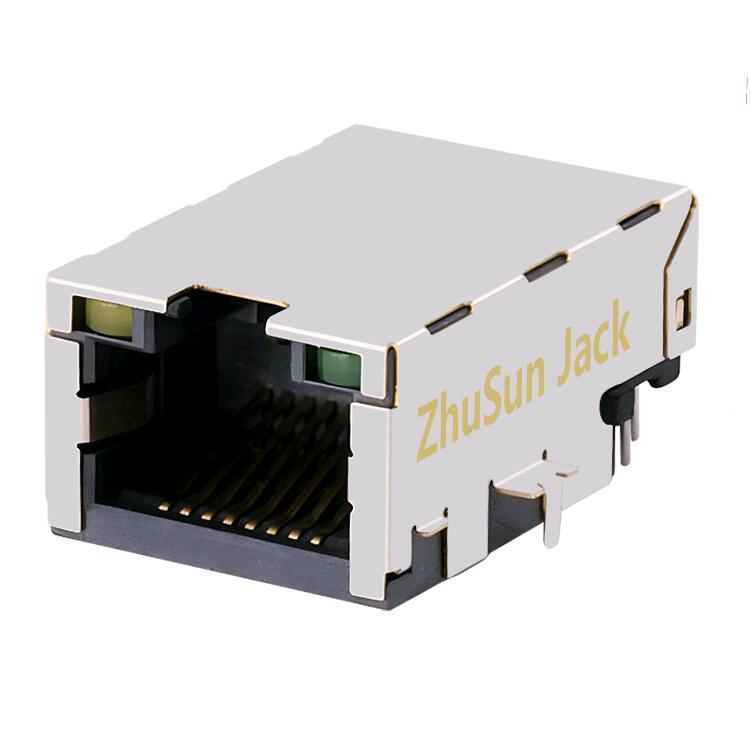

S52-ZZ-0004 RS3-2840H47A Single Port RJ45 Receptacle 1 With LED Plugin Ethernet Connectors ROHS Sink Tyep 2.5G Base-T

Number of Ports: 1X1

Speed: 2.5G Base-T

Application-Lan : NoN PoE

Latch: UP

LED: With LED

Orientation : 90°Angle (Right)

Compatible Brand : UDE

Mounting Type: Through Hole

Shielding: Shielded, EMI Finger

Temperature: ﹣40 TO ﹢85

Product Length (mm): 26.30

Product Height (mm): 10.40

Product Width (mm): 16.50

Part Number:S52-ZZ-0004
RS3-2840H47A
S53-MT-0001

S52-ZZ-0004 RS3-2840H47A Single Port RJ45 Receptacle 1 With LED Plugin Ethernet Connectors ROHS Sink Tyep2.5G Base-T

Categories	Connectors, Interconnects
Categories	Modular Connectors - Jacks With Magnetics
Application-LAN	ETHERNET(NoN POE)
Connector Type	RJ45
Number of Positions/Contacts	8p10c
Number of Ports	1×1
Applications Speed	2.5G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.537″ (13.65mm)
LED Color	With LED
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	UP
Contact Material	Phosphor Bronze
Packaging	Tray
Operating Temperature	-40°C ~ 85°C
Contact Material Plating Thickness	Gold 6.00µin/15.00µin/30.00µin/50.00µin
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Compliant	YES-RoHS-5 WIth Lead in Solder Exemption
